Automatic Vertical Cartoning Machine For Powder and Granule

  • Automatic Vertical Cartoning Machine For Powder and Granule
  • Automatic Vertical Cartoning Machine For Powder and Granule

Automatic Vertical Cartoning Machine For Powder and Granule

    Min. Order: 1 Set/Sets
    Packaging: Wooden case
    Brand: Durzerd
    Transportation: Ocean,Land
    Place of Origin: China
    Port: SHANGHAI PORT

Product Description

Brief Introduction:

This cartoner Packaging Machine is suitable for packing granular materials directly into the carton box. Granule Bucket Elevator needs to be used to deliver materials to the silo. At the same time, it needs to be equipped with Metal Detector to detect whether metal is mixed.

On line product feeding and detecting, leaflet fold (l-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.

Features:

1. International famous brand of electrical component such as PLC touch screen, frequency inverter, etc.

2. Adopt human-machine operation system.

3. Automatically stop when machine is overload.

4. Automatically reject lacking of package product and leaflet.

5. Automatically display trouble, Alarm and count finished products.

6. Vertical Cartoner: Stable performance, operation is easy.

APPLICATION:

Cartoner packaging machine is suitable for packaging of various kinds of foodstuff, packaging of chemical products, packaging of animal foods and packaging of agricultural products. So this machine can also be used with Corn Flakes Package and flour Packing Machine, etc.

horizontal cartoning machine

Automatic Cartoning Machine detailed description

cardboard box folding machine

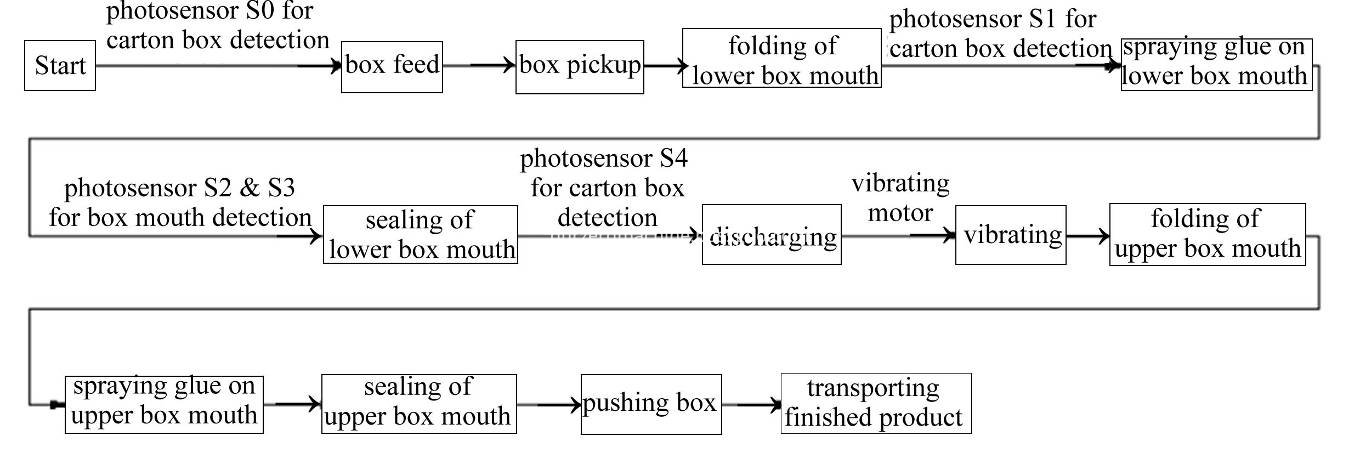

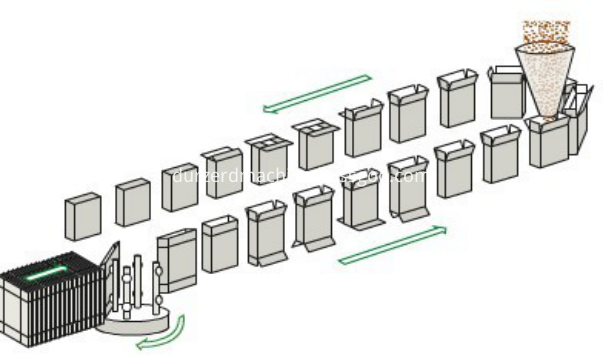

Carton Box Packer Working process:

cartoner packaging machine

Automatic Vertical Cartoning Machine

Auto Cartoner Machine Technical Parameters

Encasing speed

100-120(Cartons/min)

Carton

Quality requirement

800-900g/m2 Base on carton size

Dimension range (L x W x H)

(80-200)mm x (30-80)mm x (160-300)mm

Compressed air

Working pressure

N0.5Mpa

Air consumption

0.6m³/min

Power supply

220V 50Hz

Motor power

1.5kw

Machine dimension (L x W x H)

5500mm x 3000mm x 2100mm

Machine weight

1200kg
